Technical Details
Engineered for Flexibility

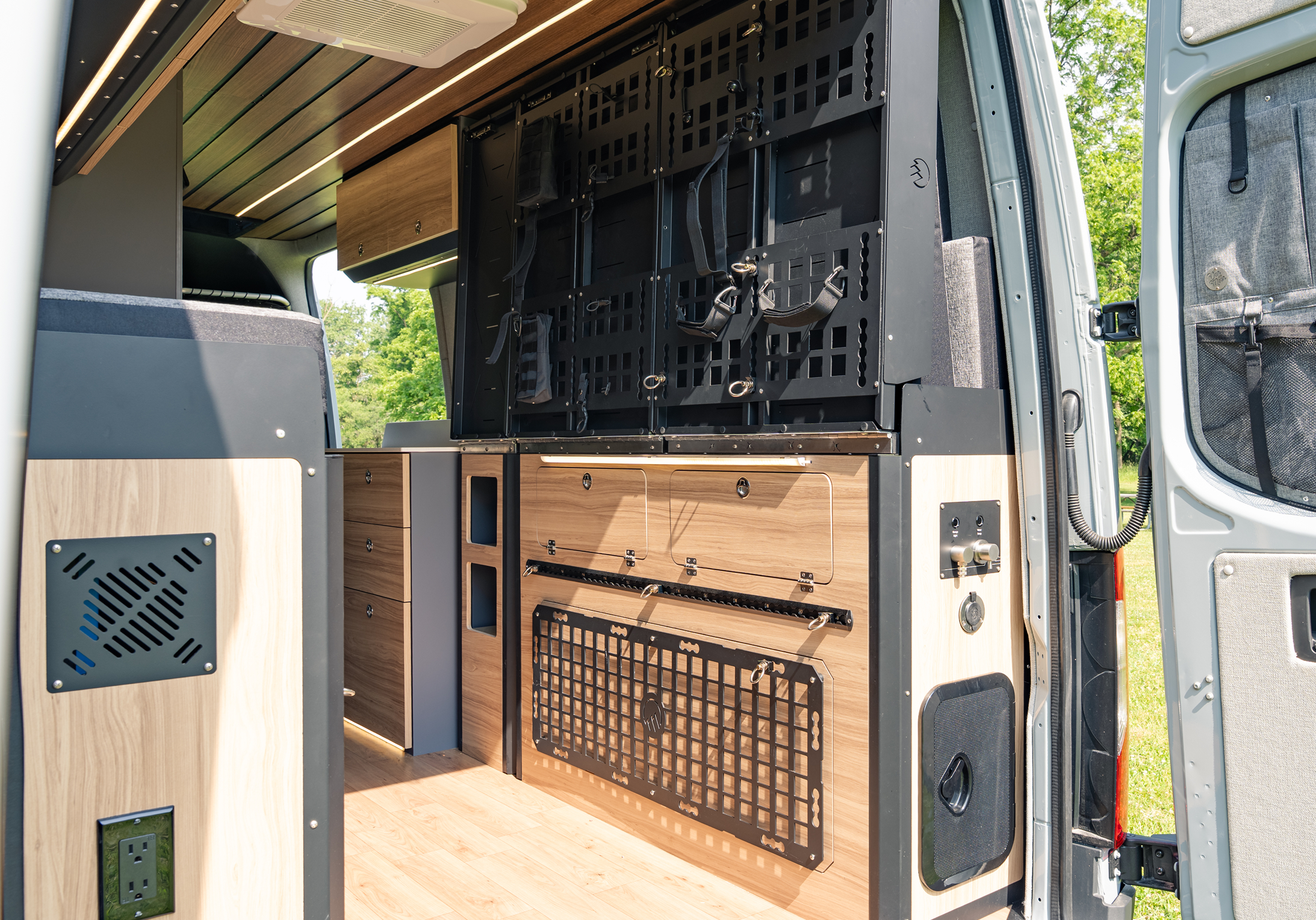

Each cabinet frame includes dedicated mounting points for secure attachment to both the van’s structural beams and the floor, ensuring a solid and reliable fit.
The frame also features modular hole locations, allowing you to adjust platform height and crossbar placement — ideal for integrating custom utility systems.
Premium Wood Panel Detailing
When equipped with wood panels, each set includes:
- Access doors with integrated hinges and stainless steel latches
- Precision-milled panels for a flush, clean look
- Pockets for L-tracks and pre-set alignment holes
Optional upgrades include MOLLE panels, electrical outlets, vent covers, or plumbing ports. Contact our team to request a custom configuration.
Standard Finish
Standard panels feature a solid, minimalist design that’s ready for personal customization — whether you prefer a clean look or added functionality.
Built to Last
Made in the USA from aircraft-grade aluminum. Precision-engineered, lightweight, and designed for years of use on the road.
Features
Utility-Ready Design
Built to integrate your van’s electrical and plumbing systems neatly within the frame. Easy to access, organized, and protected.
Durable Construction
Made from laser-cut aluminum with high-pressure laminate (HPL) panels. Strong, lightweight, and built for daily use.
L-Track & MOLLE Options
Standard panels include L-track pockets for tie-downs. Add optional MOLLE panels for more mounting and storage flexibility.
Smart Cooling
A vented top plate and lower airflow path help keep internal components cool and running smoothly.
Lighting-Ready
Panels are designed to fit LED strip lighting under or beside the cabinets for clean, even illumination.
Easy Installation
Preassembled with CNC-cut parts. Installs quickly using standard tools and pre-marked mounting points.
Accessible Design
Access points let you reach storage and utilities easily from inside or outside the van.
Custom Upgrades
Options include MOLLE panels, outlets, vent covers, and plumbing ports. Reach out to the Highland Vans team to tailor your setup.
What's Included
Utility Cabinet
Driver’s-side or passenger-side units, precision-built from laser-cut aluminum. Choose one or both depending on your layout — ideal for housing electrical systems, plumbing, or general storage.
Mounting Hardware
Includes all required rivets, bolts, and fasteners for a secure installation.
Optional Add-Ons
- HPL wood panels in your choice of color and finish
- Integrated L-tracks
- MOLLE panel systems
- Power outlets, switches, and external connections
- Vent plate covers
- LED storage lighting
Materials
Aluminum Frame
Lightweight, corrosion-resistant, and precision-cut for a perfect fit.
Baltic Birch Plywood Panels
Durable structural base with natural vibration resistance and long-term stability.
HPL Surface Finish
Scratch, heat, and moisture resistant with a modern, easy-to-clean surface.
Stainless Hardware
High-quality fasteners, hinges, and latches designed for smooth operation and long-term durability.

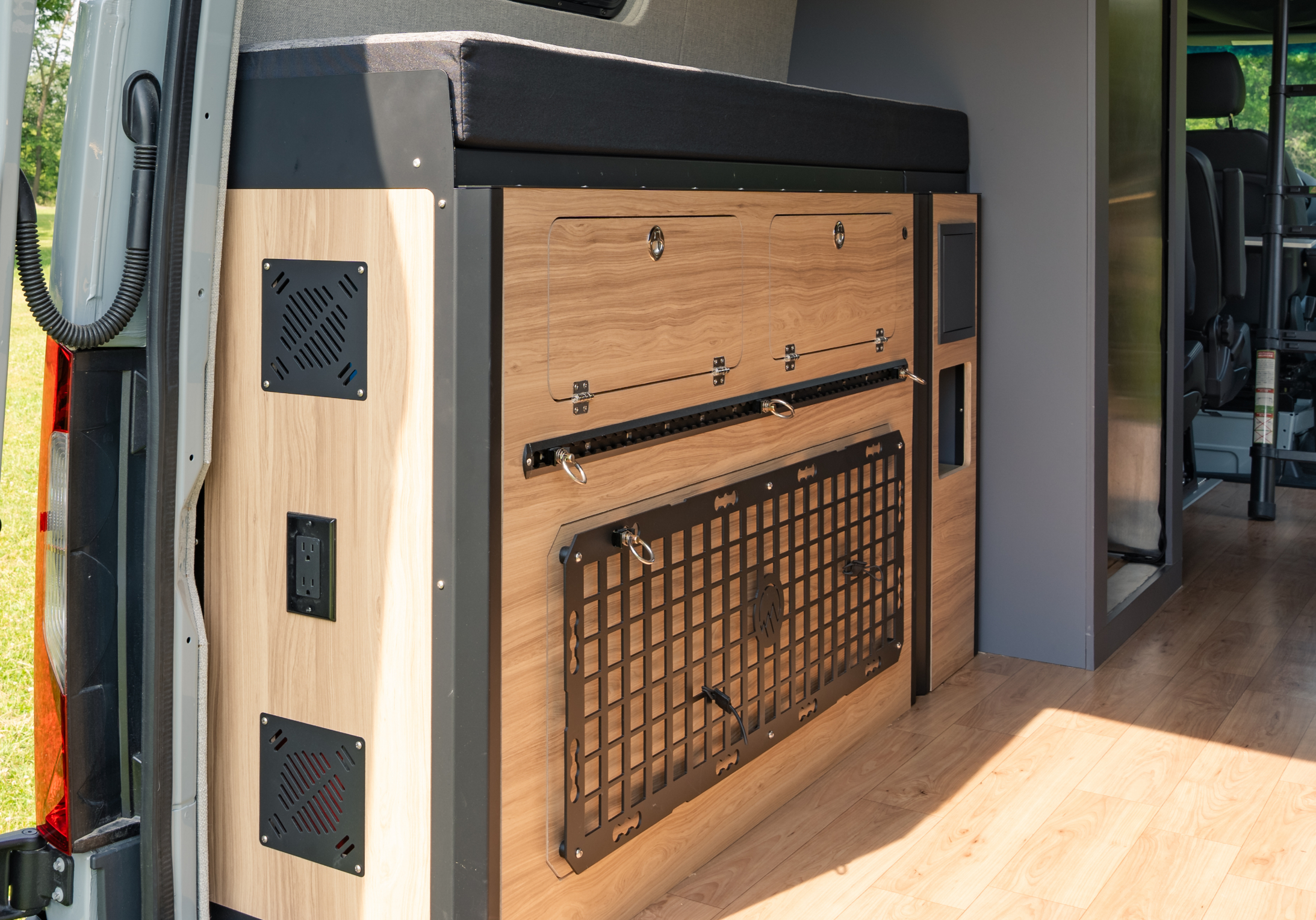

Compatibility

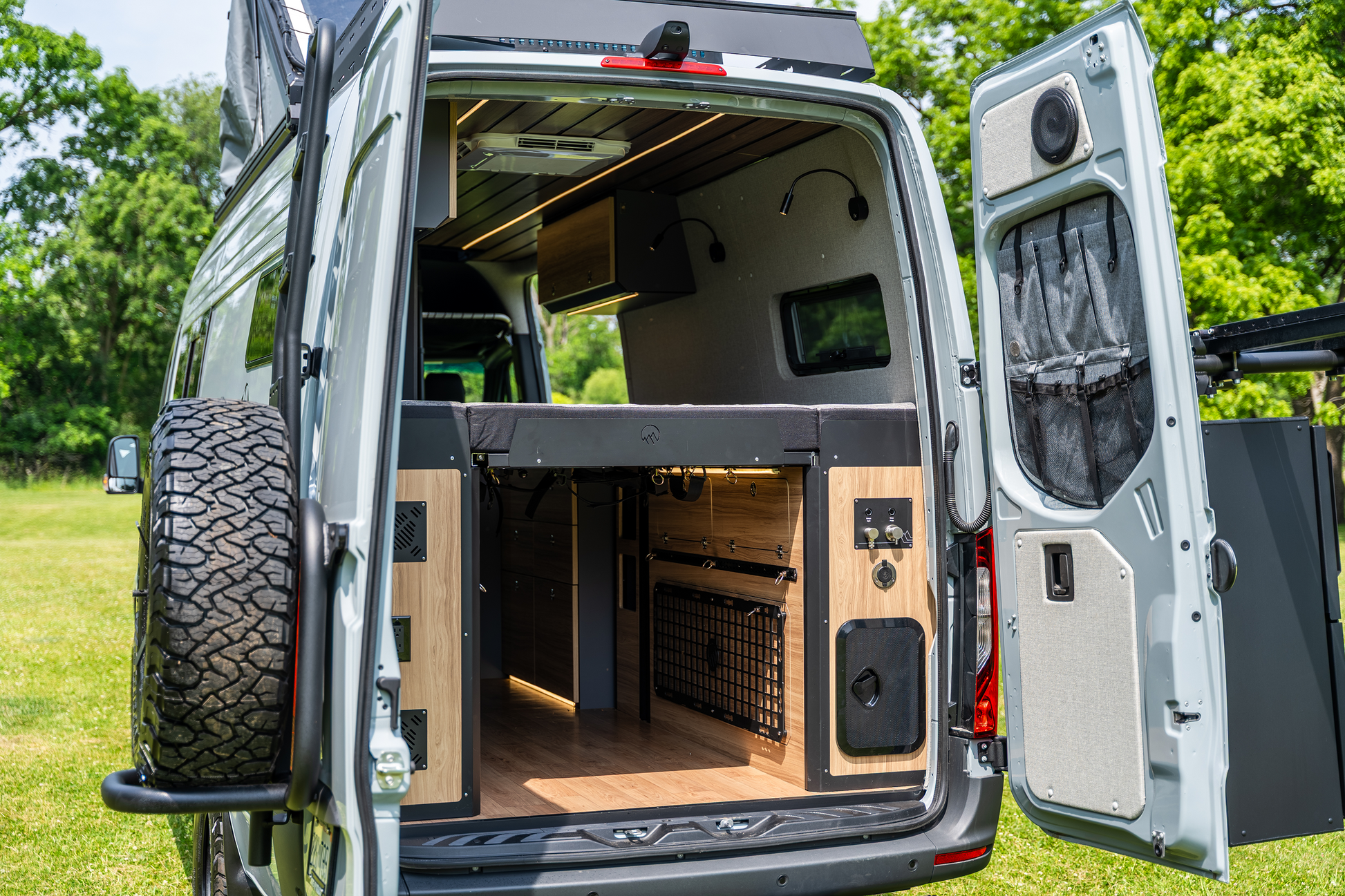

Fits all Mercedes-Benz Sprinter vans: 144", 170", and 170" EXT wheelbases. Engineered for precise alignment with factory structures and mounting points.
Shipping
Processing time: 2–7 days
Shipping time: 2–10 days
Weight: 40 lbs
Flat-rate shipping available. Free local pickup option.
-

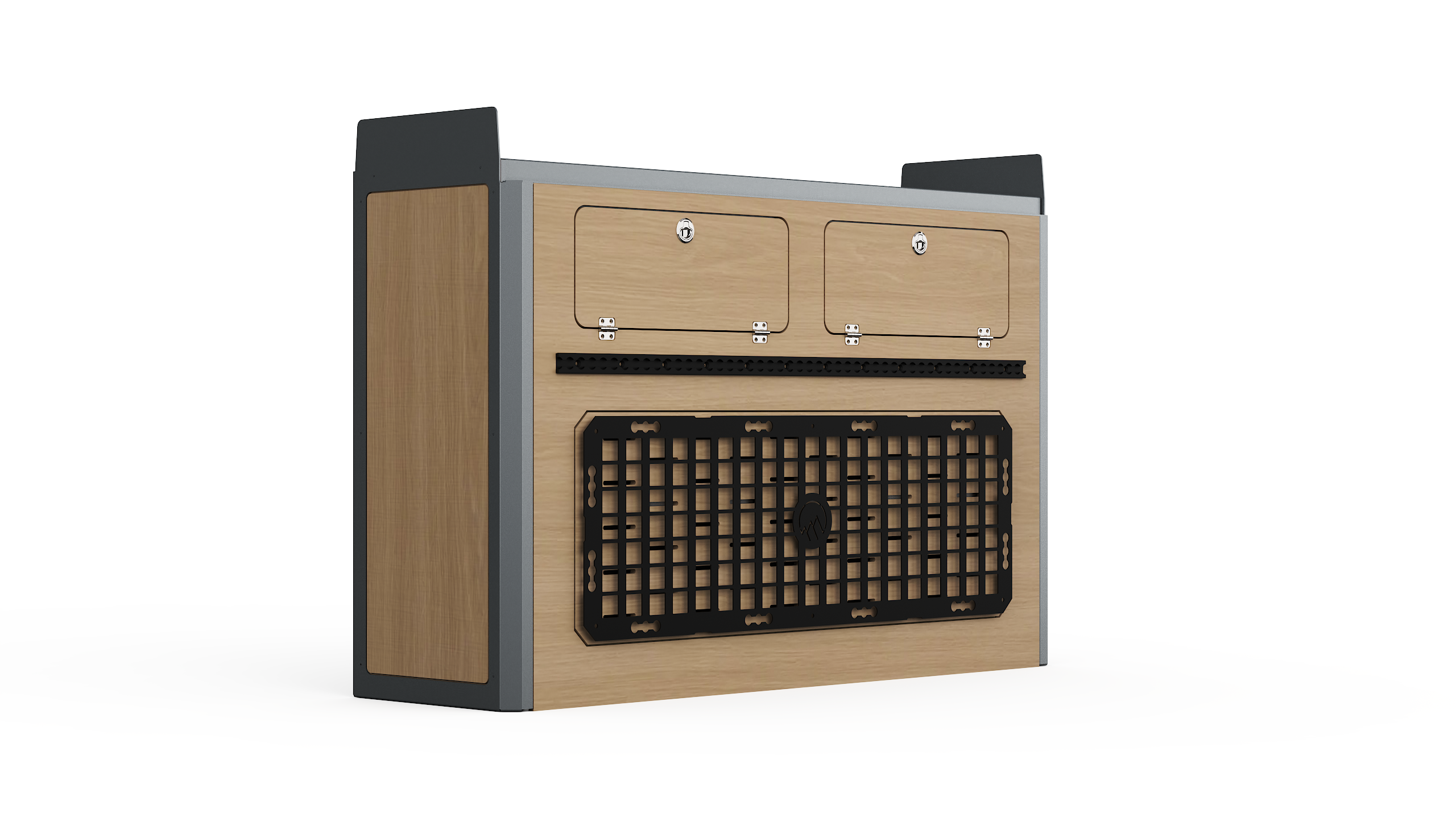

STOWE
Stowe is contemporary with Ivory Velvet Elm fronts and Charcoal Velvet sides. Black aluminum powder-coated frames give it a stylish, minimalist look
-

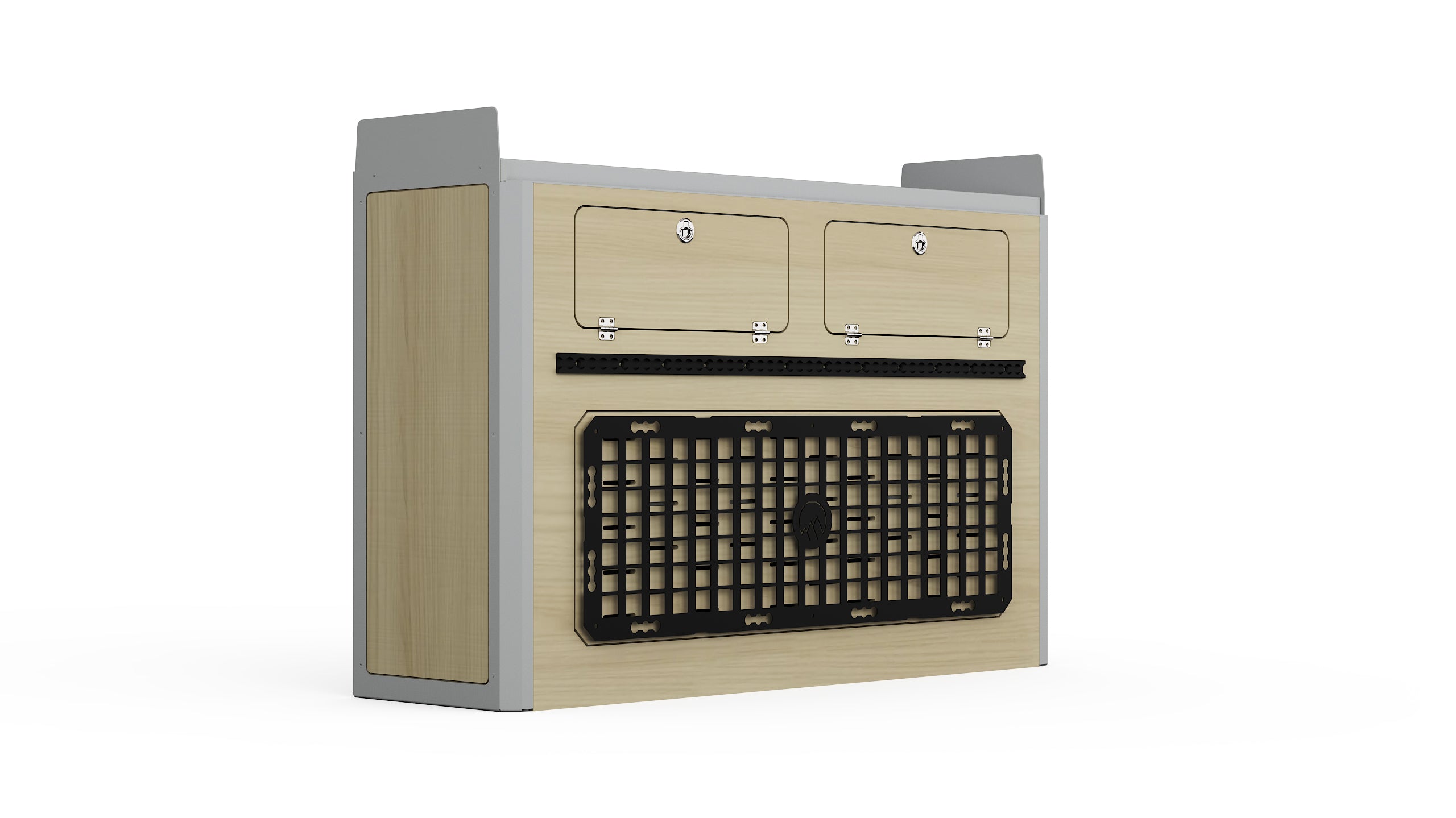

ESTES
Estes embodies adventure with Sesame Velvet Elm fronts and Snow White Velvet sides. White aluminum powdercoated frames add a cozy, outdoor-inspired touch
-

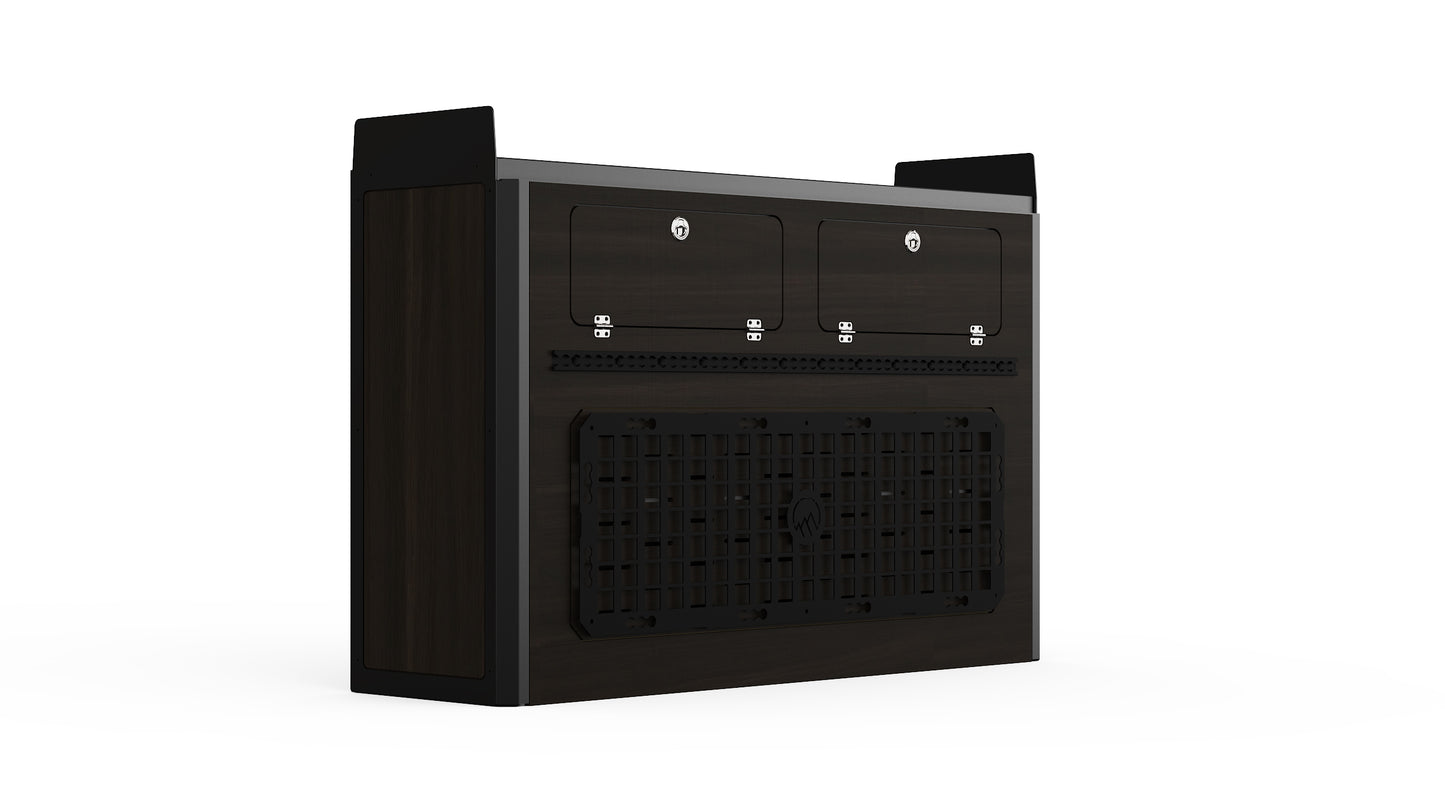

CORDOVA
Cordova exudes elegance with Smokey Velvet Elm fronts and Black Velvet sides. Black aluminum powder-coated frames enhance its modern, luxurious feel
-

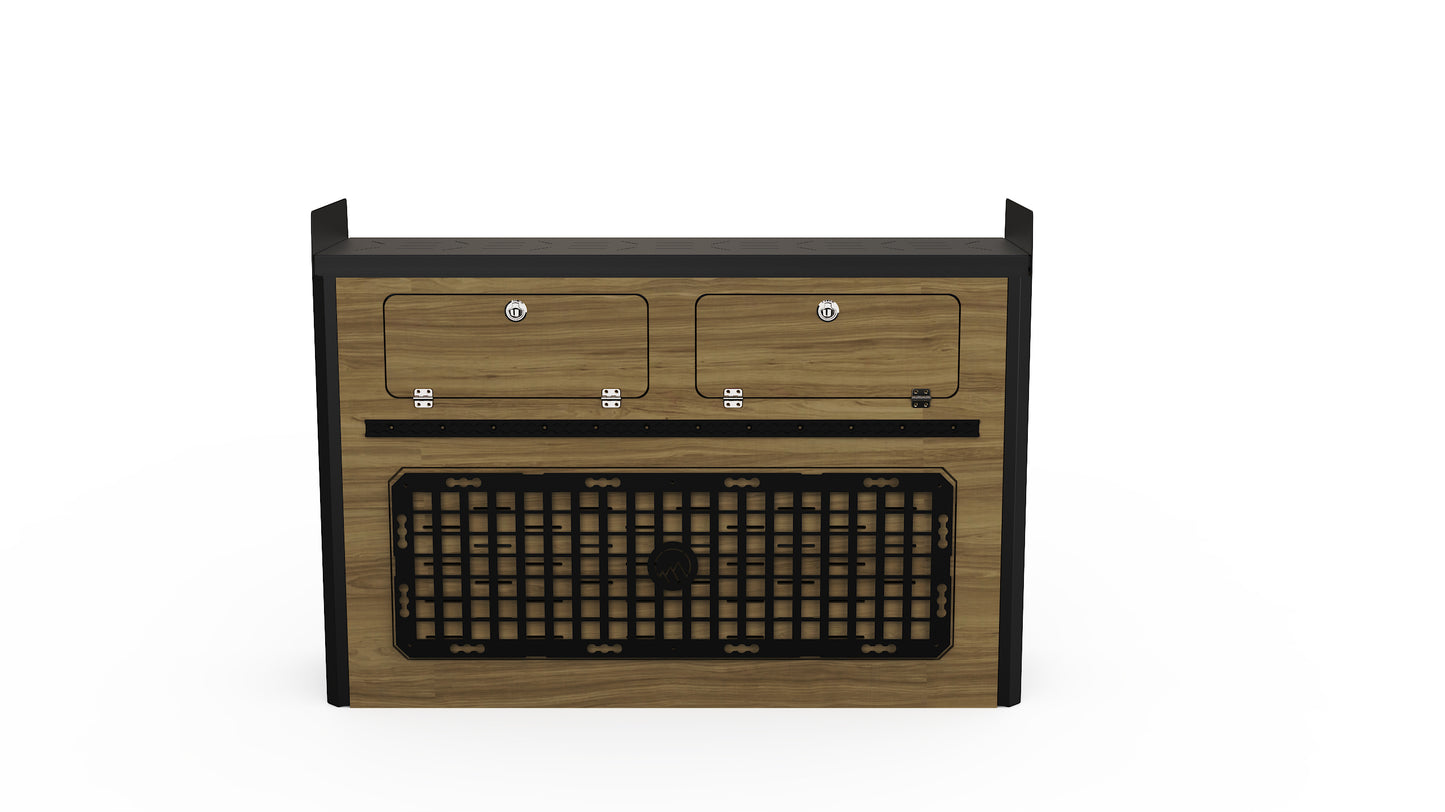

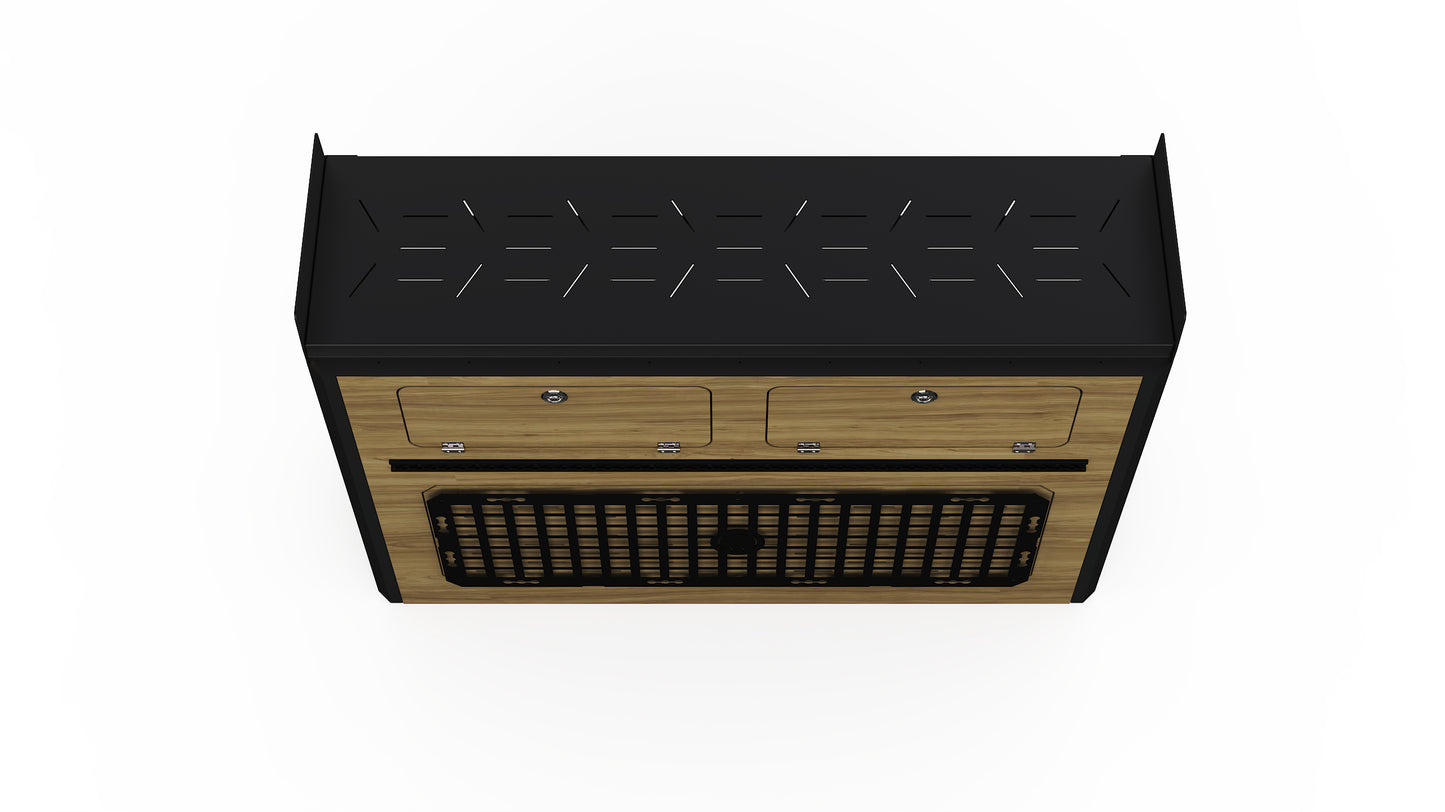

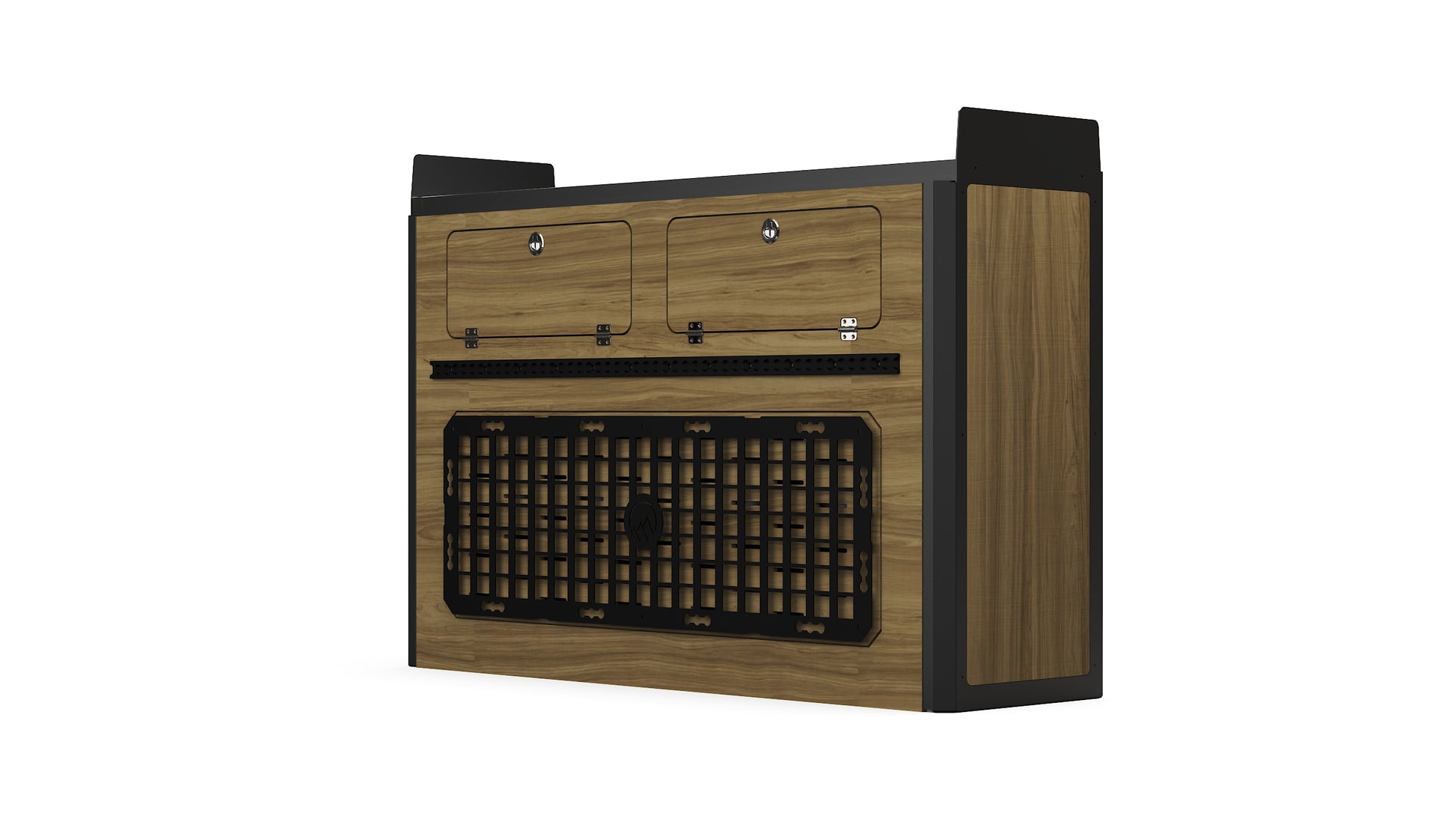

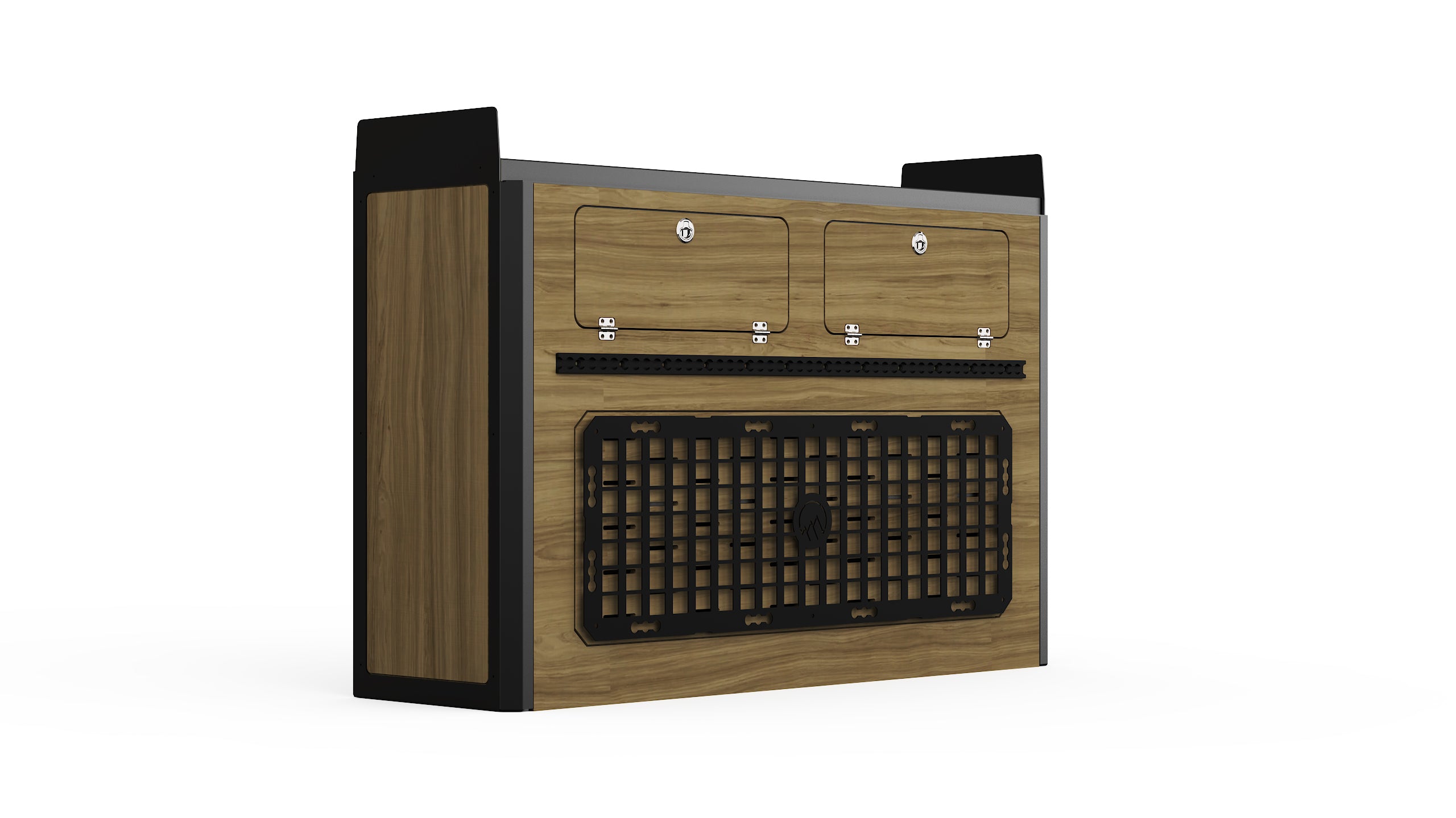

BRYSON
The Bryson scheme offers a fresh vibe with Acorn Velvet Elm front faces and Slate Velvet sides. Black aluminum frames complete the tranquil, inviting look
-
Utility-Ready Design
Built with integrated channels and space to route electrical and plumbing systems cleanly through the frame
-

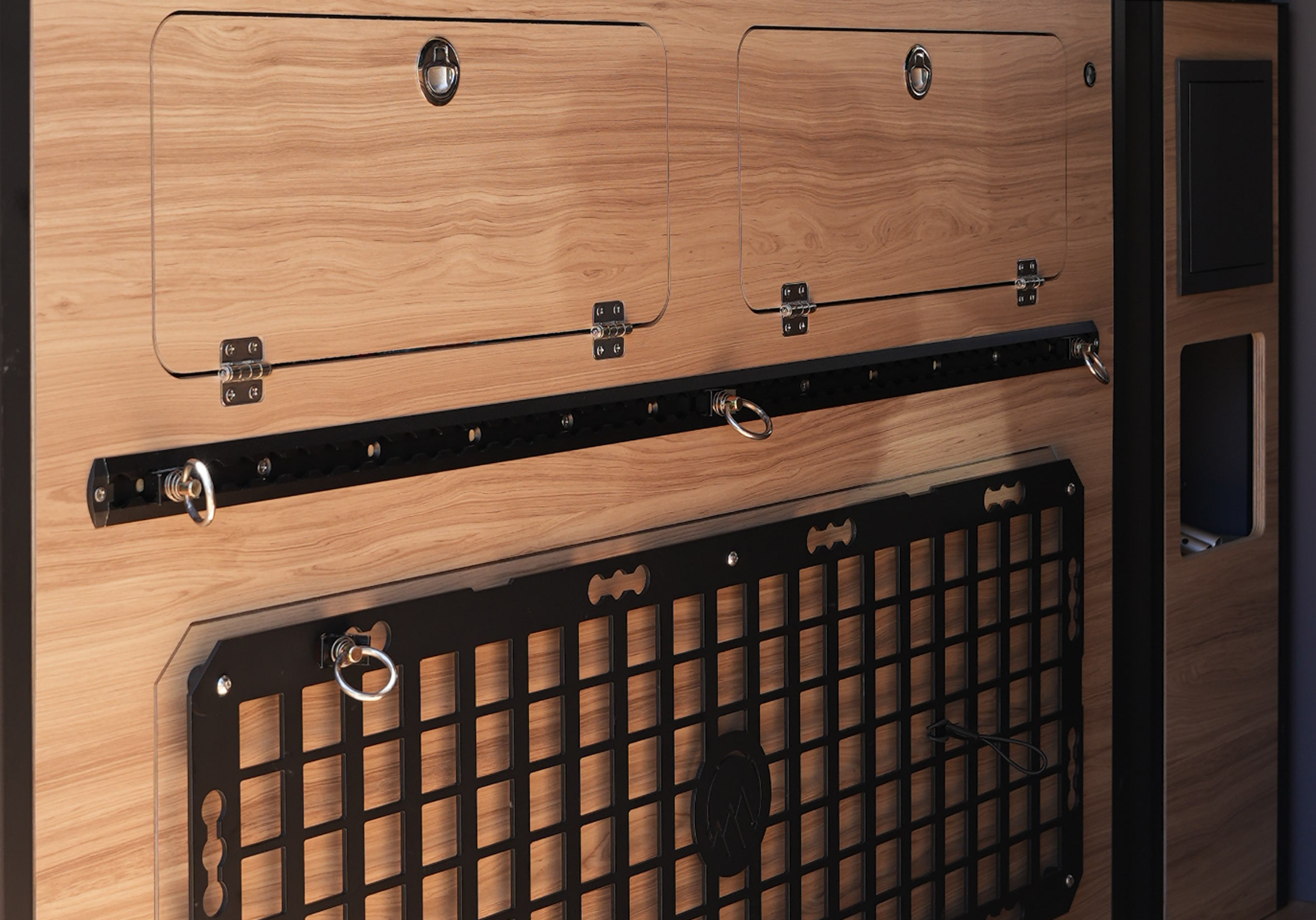

Durable Construction
Made from laser-cut aluminum and HPL panels — lightweight, corrosion-resistant, and built to handle real-world use
-

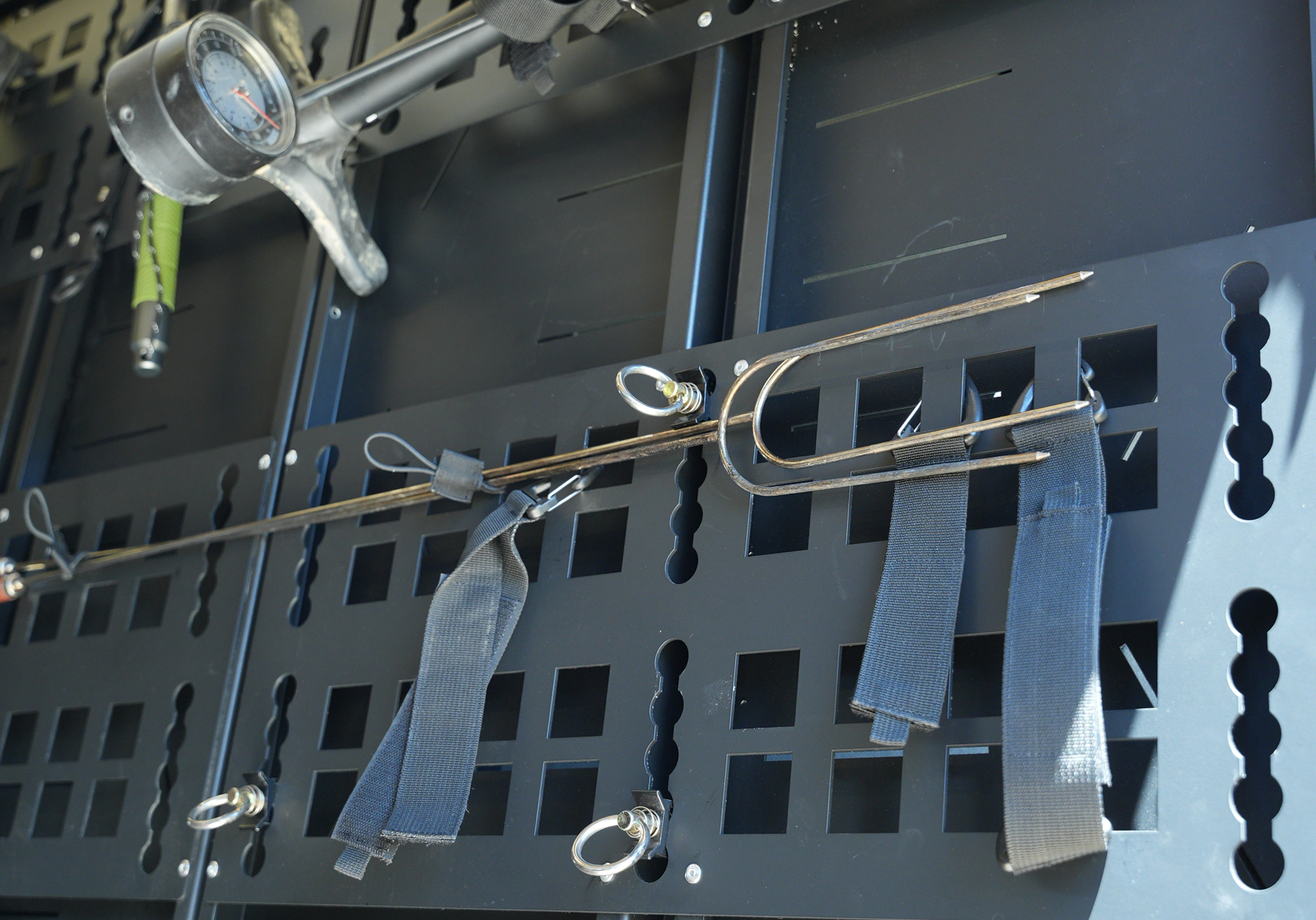

L-Track & MOLLE
Standard panels include L-track pockets for tie-downs. Add optional MOLLE panels for flexible gear mounting and organization
-

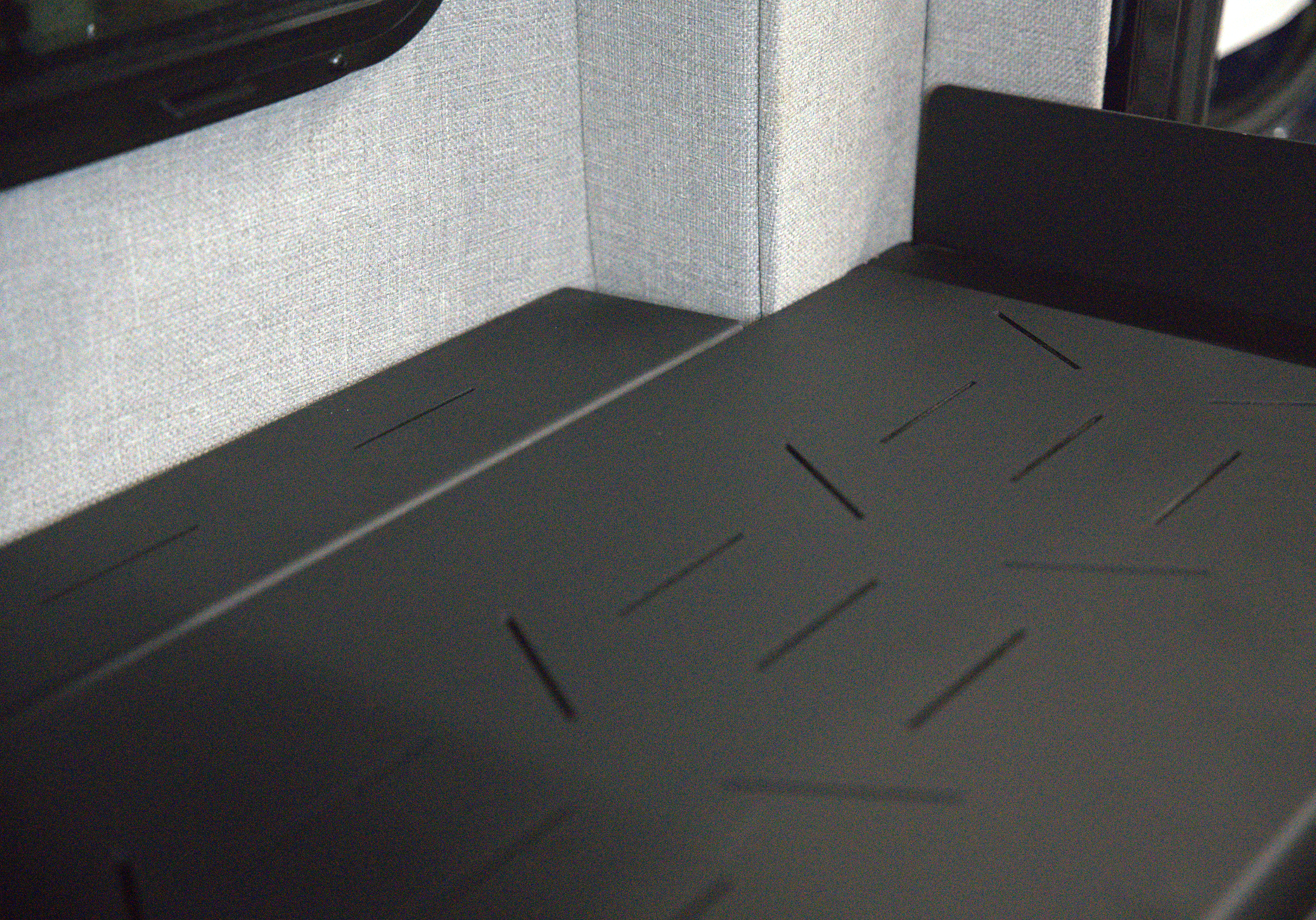

Smart Cooling
A vented top plate and lower airflow path help regulate temperature and keep internal components cool
-

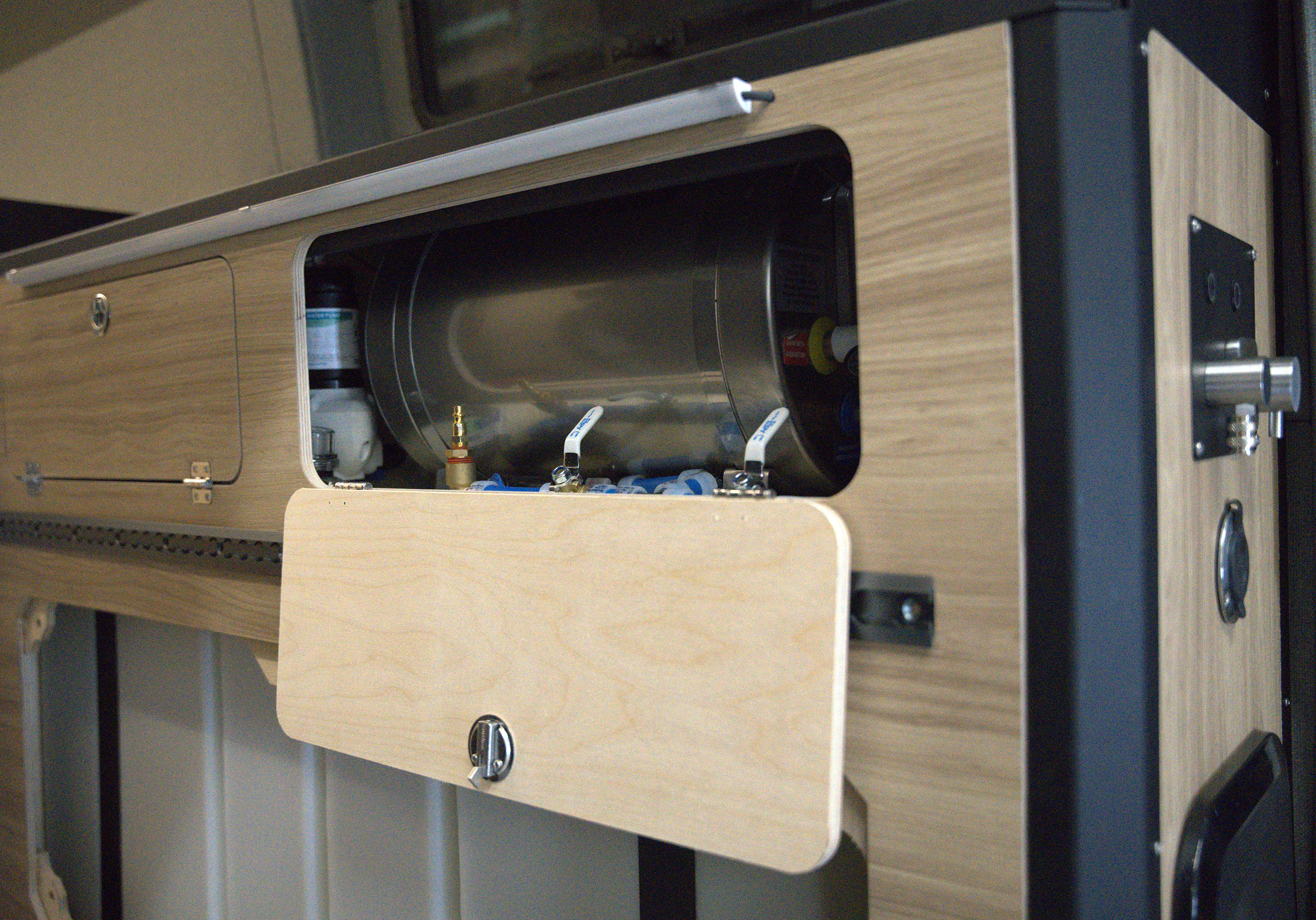

Accessible Design
Smart access points let you reach utilities and storage easily from inside or outside the van
-

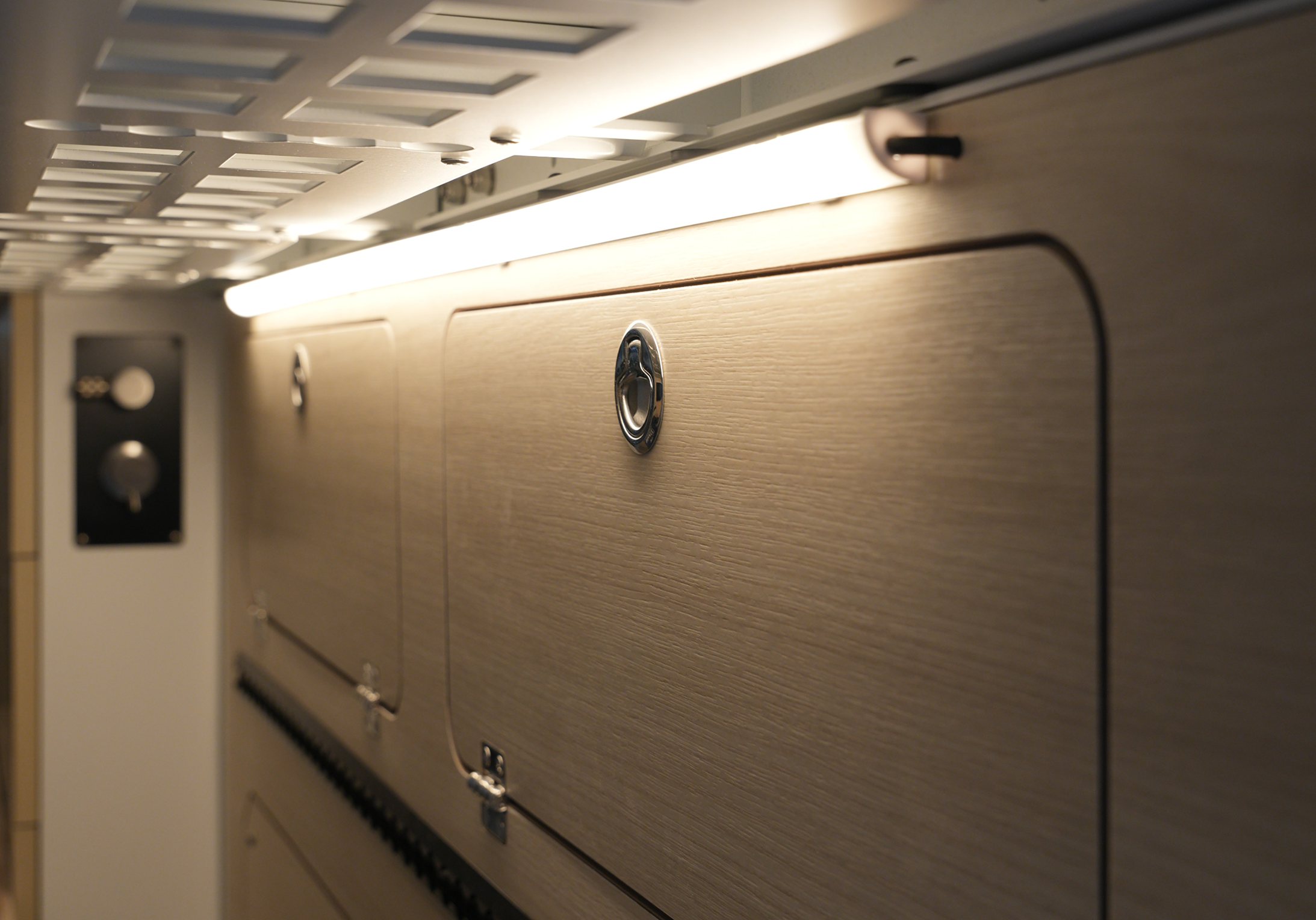

Lighting-Ready
Designed to fit LED strip lighting under or beside the cabinets for clean, even illumination in your storage areas

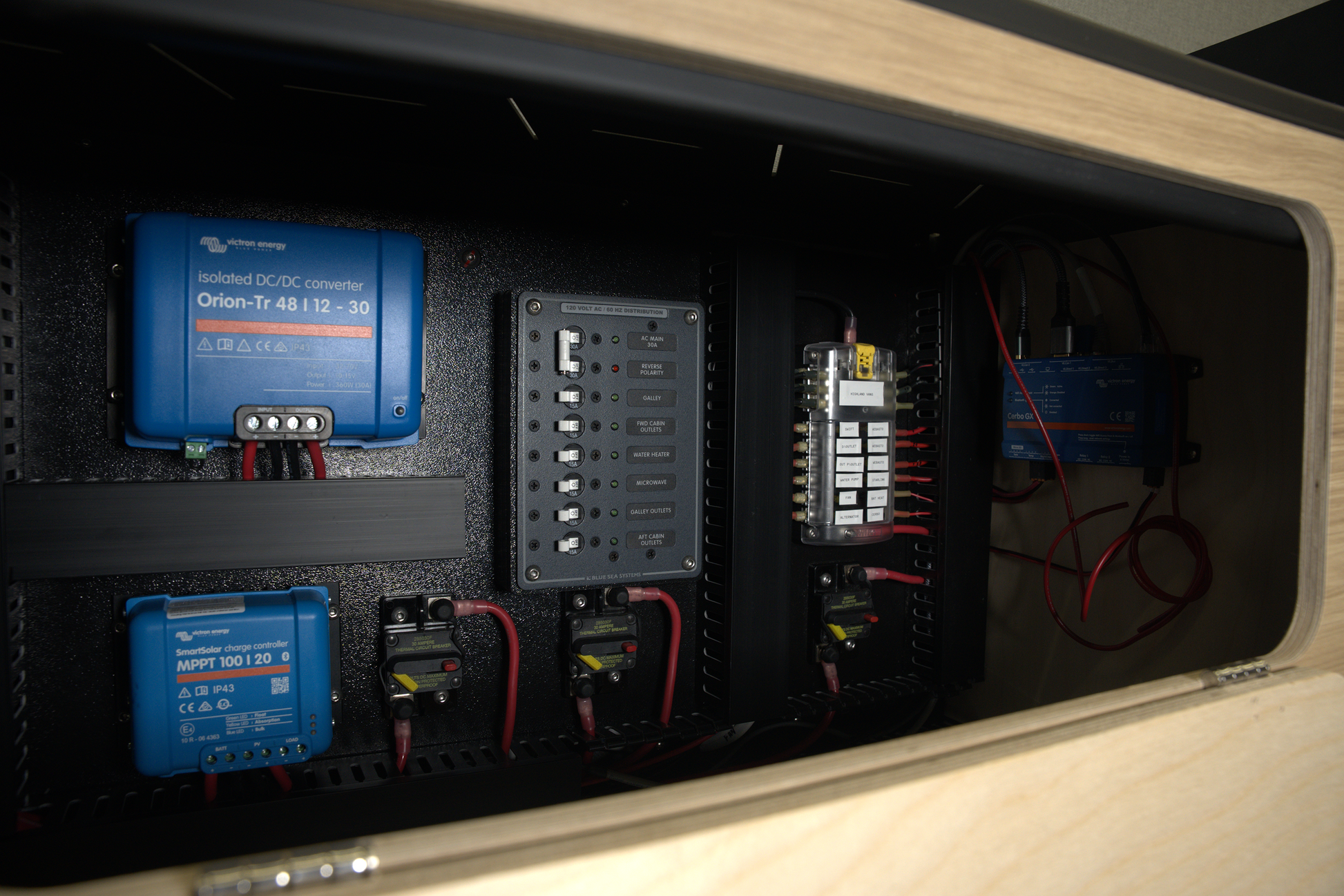

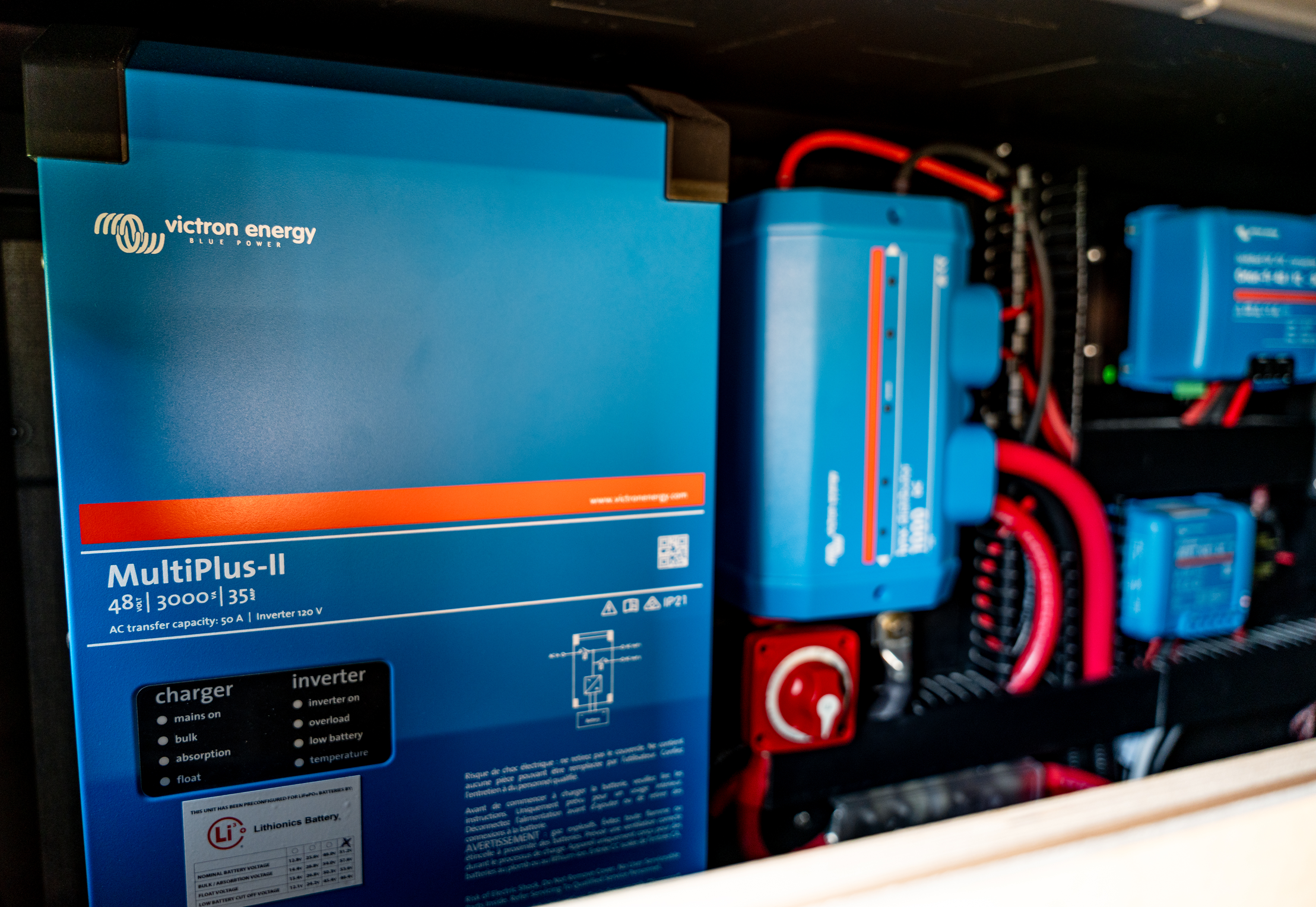

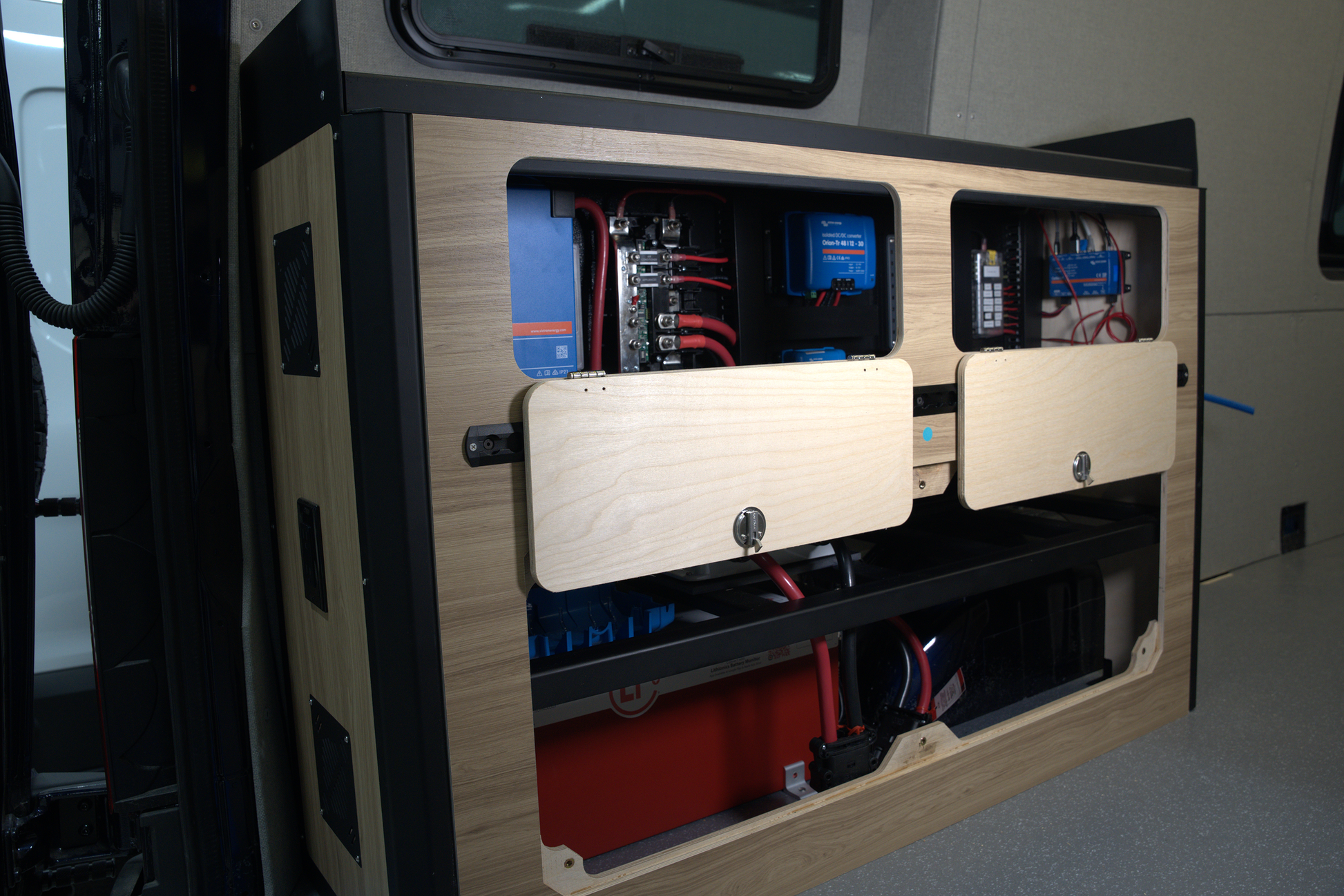

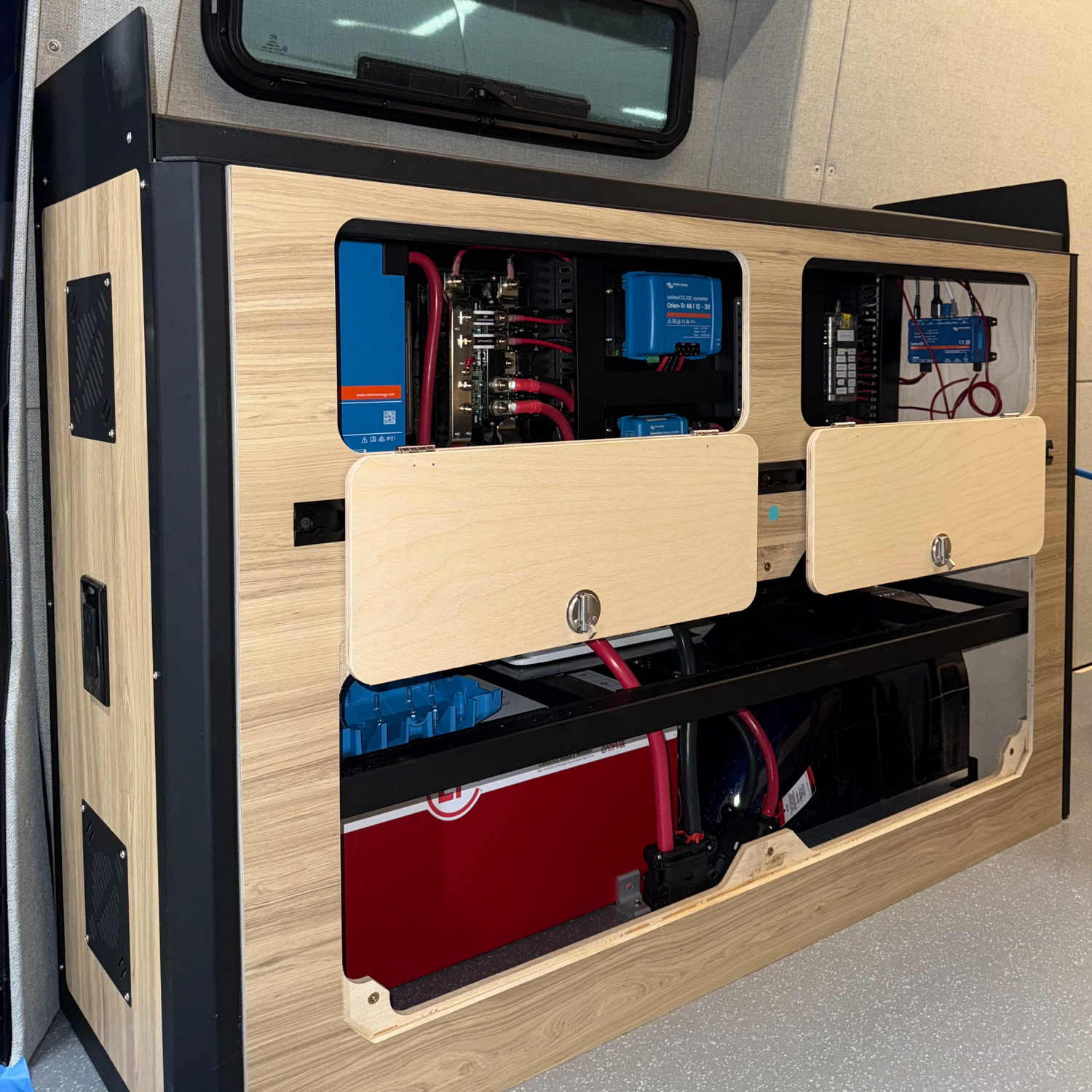

Electrical Module
The utility cabinet can be configured to house a complete electrical system, ready to house batteries, inverters, solar charge controllers, and other off-grid components.
The frame is adjustable, allowing you to mount equipment securely and create clean wiring runs. Ventilation can be added for heat management, and standard electrical packages are available.

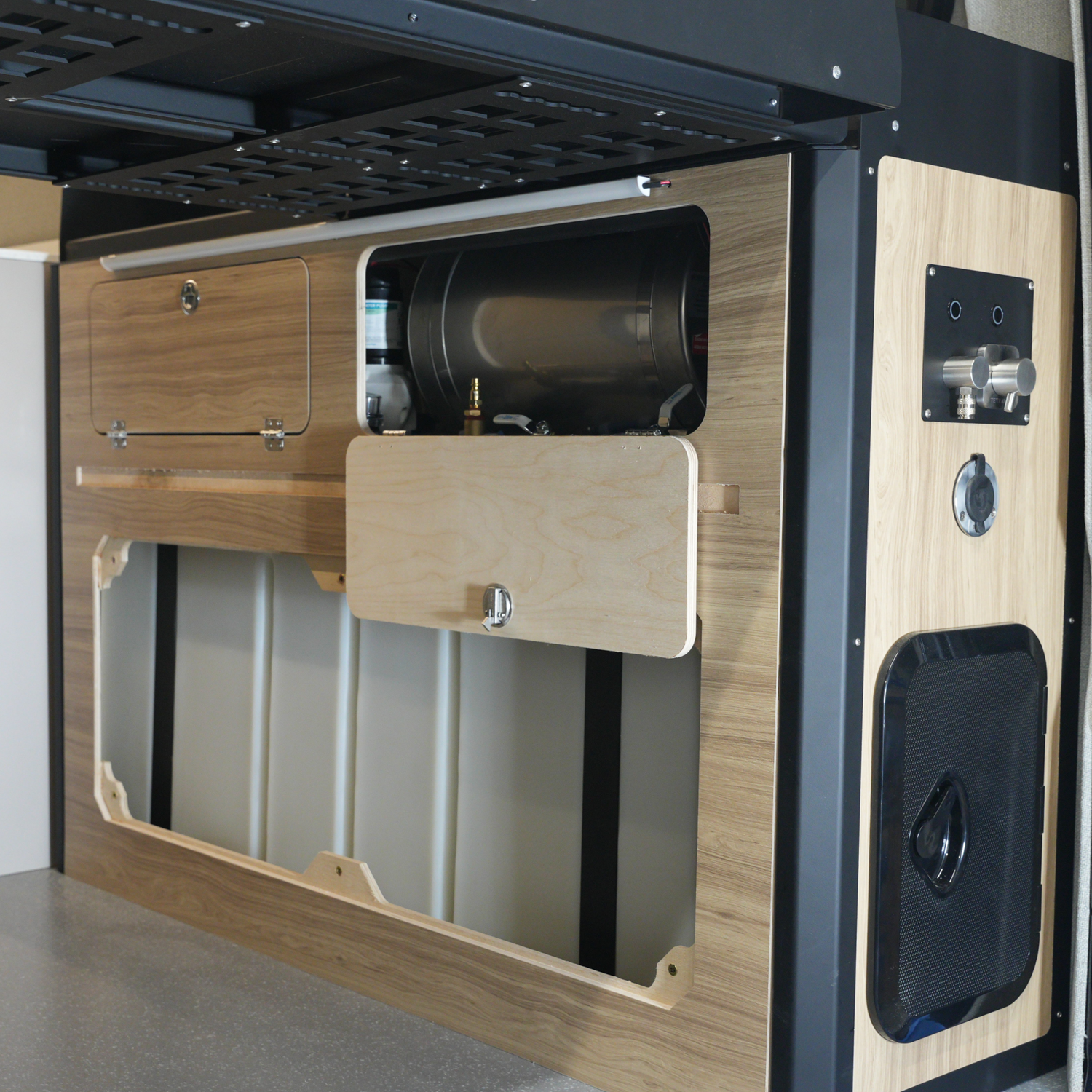

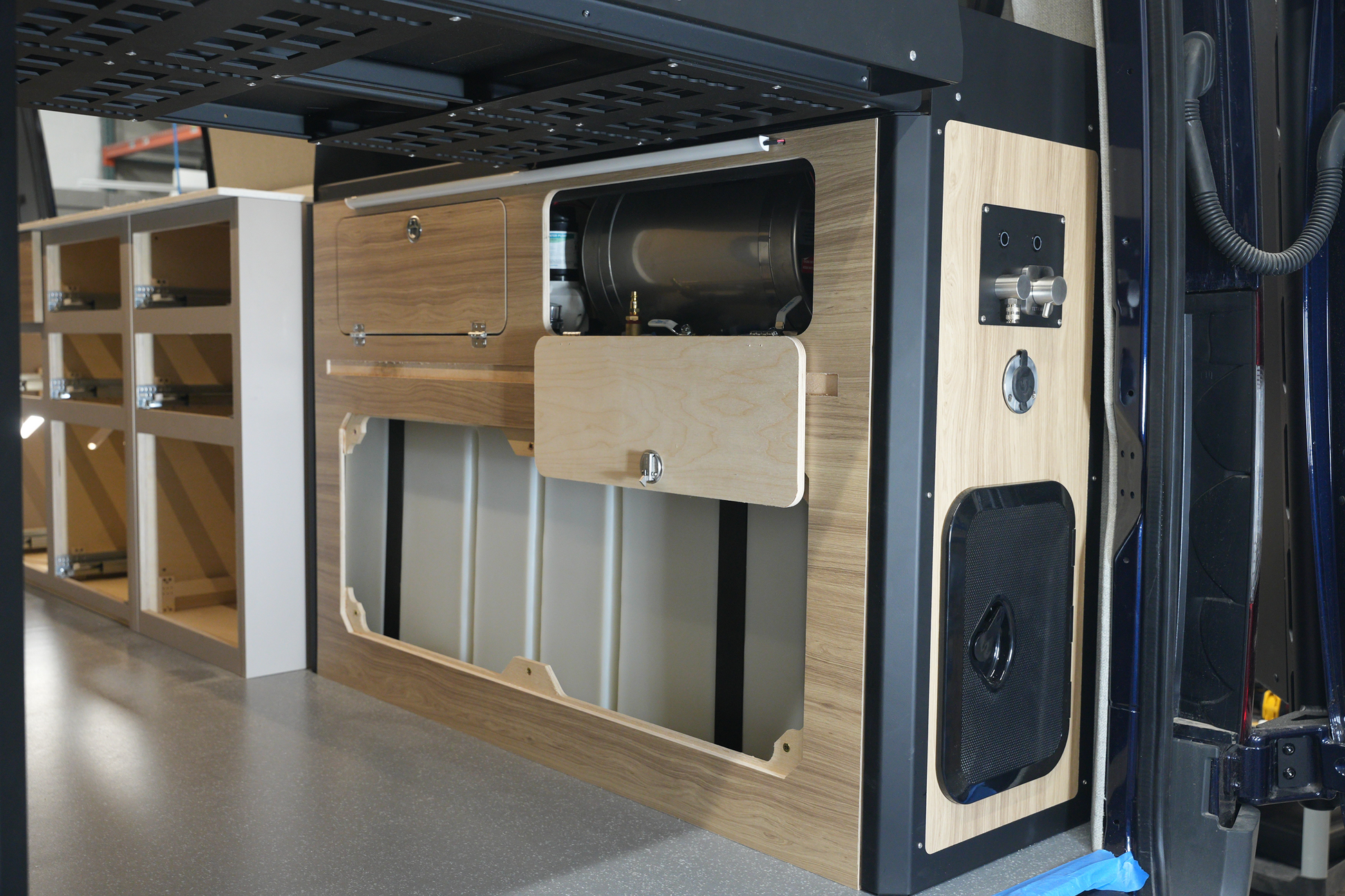

Plumbing Module

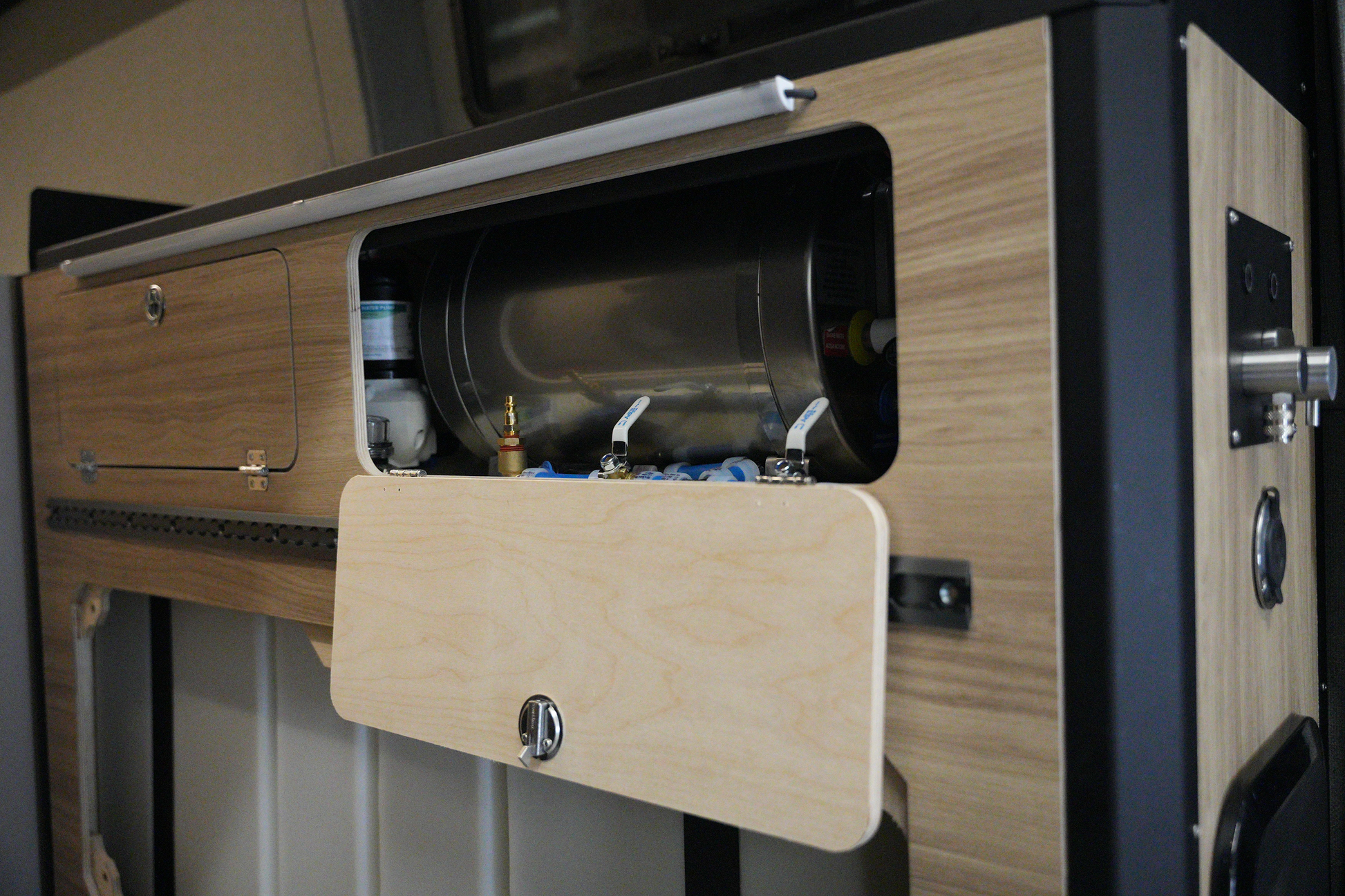

The plumbing cabinet is designed to accommodate a large water tank underneath, with an upper platform that provides space for pumps, water heaters, filters, accumulators, and other plumbing components.
The frame can be customized to integrate shut-off valves, fill ports, winterization provisions, or even an outdoor shower system.

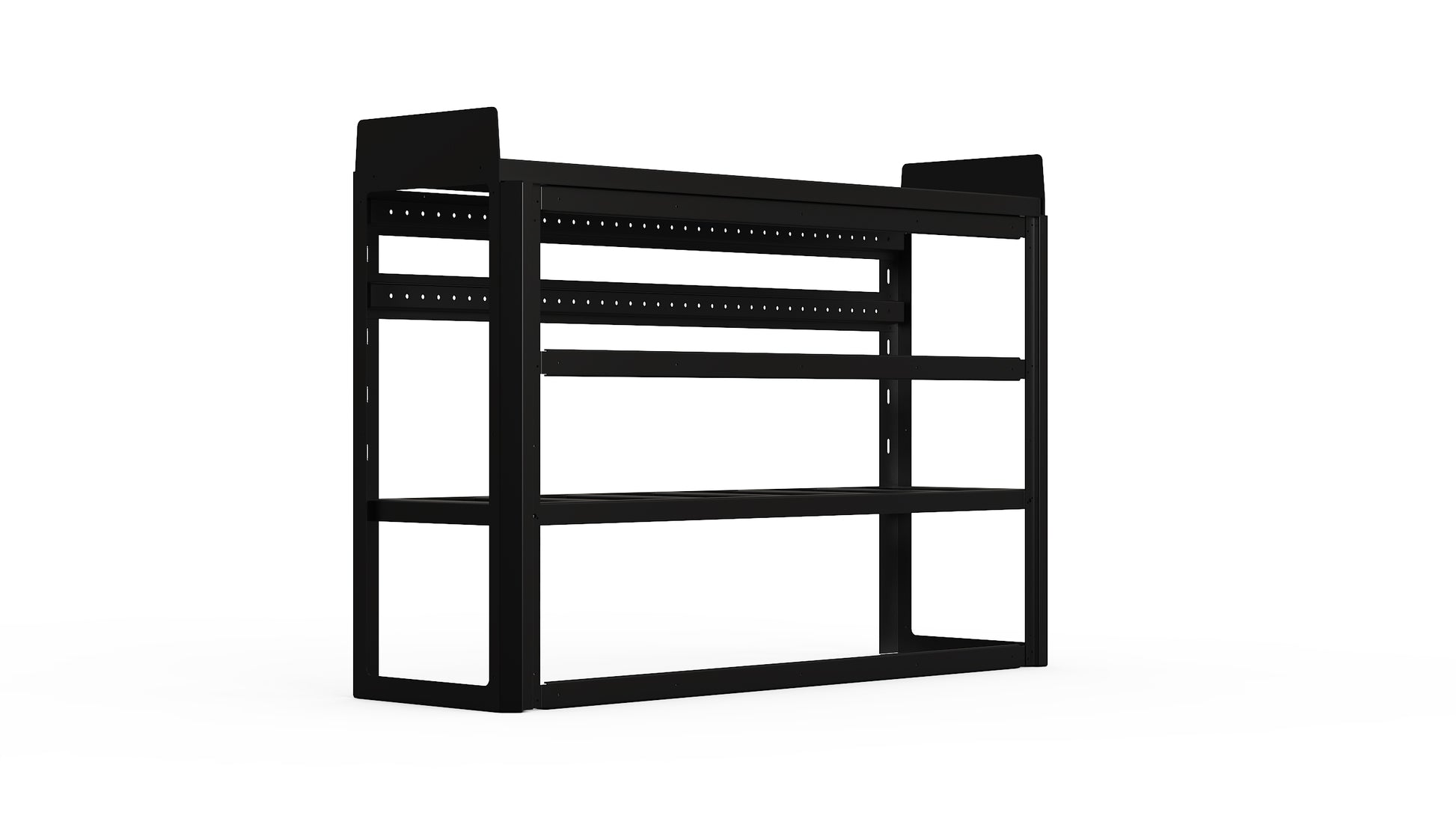

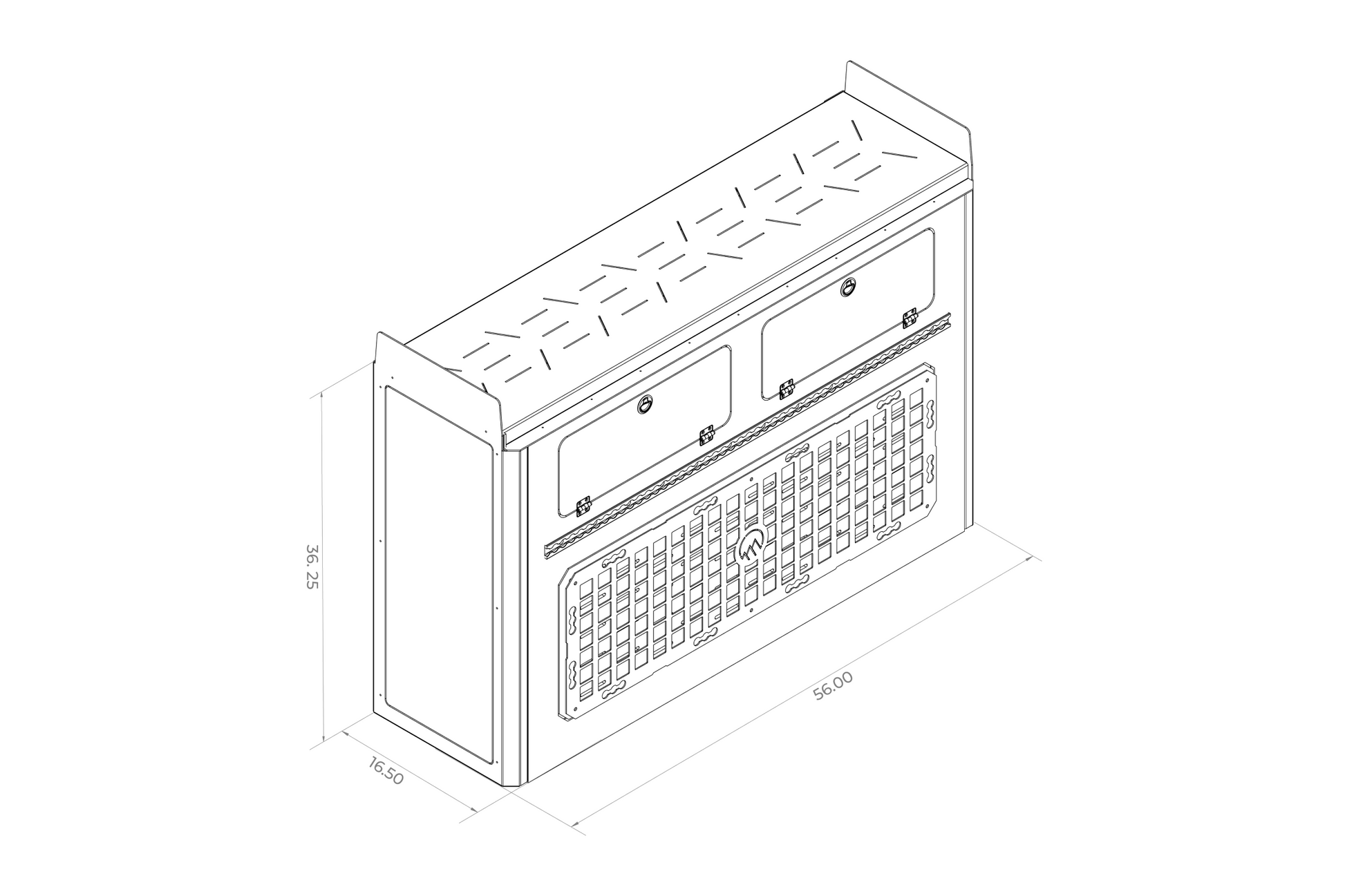

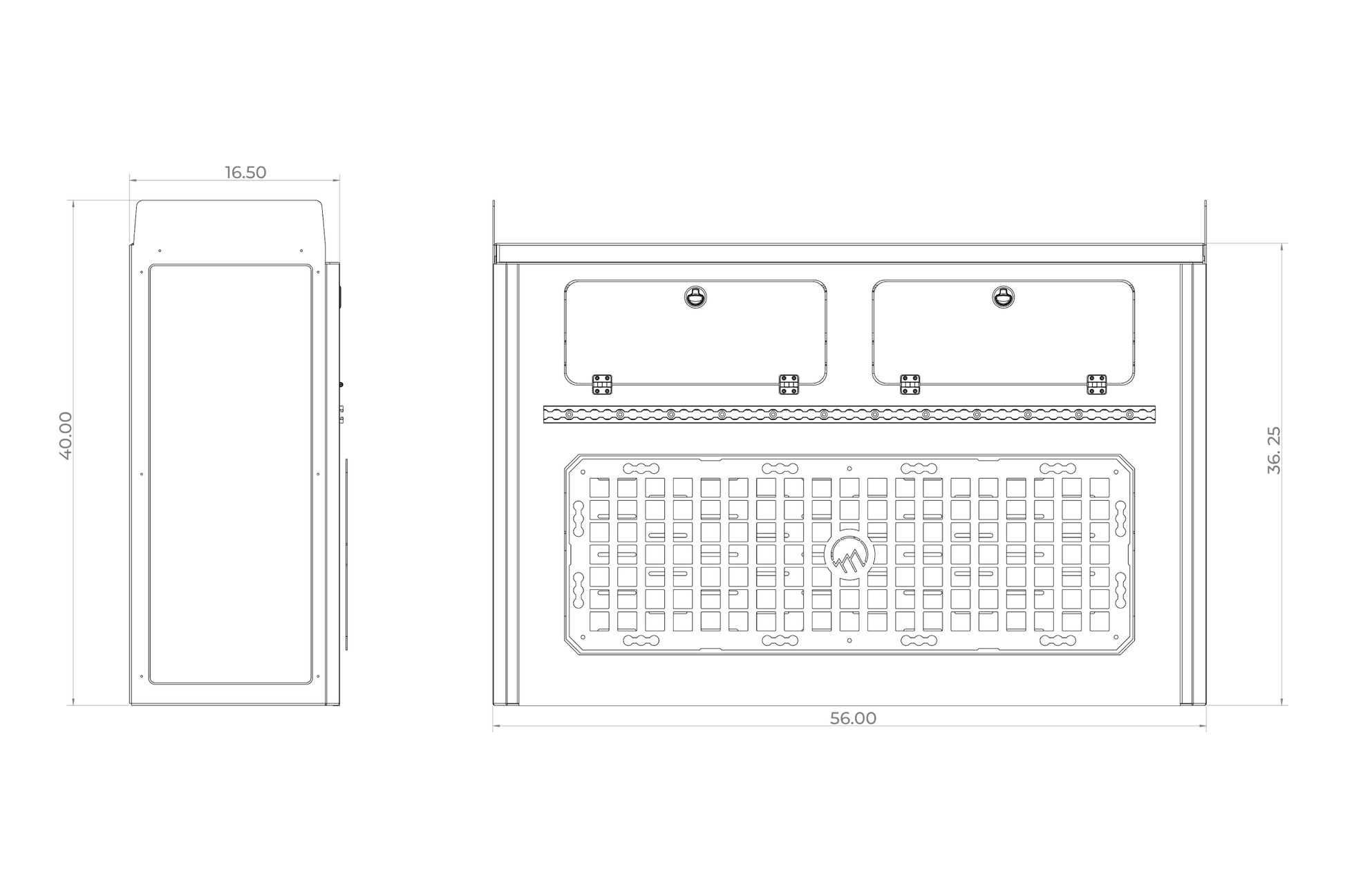

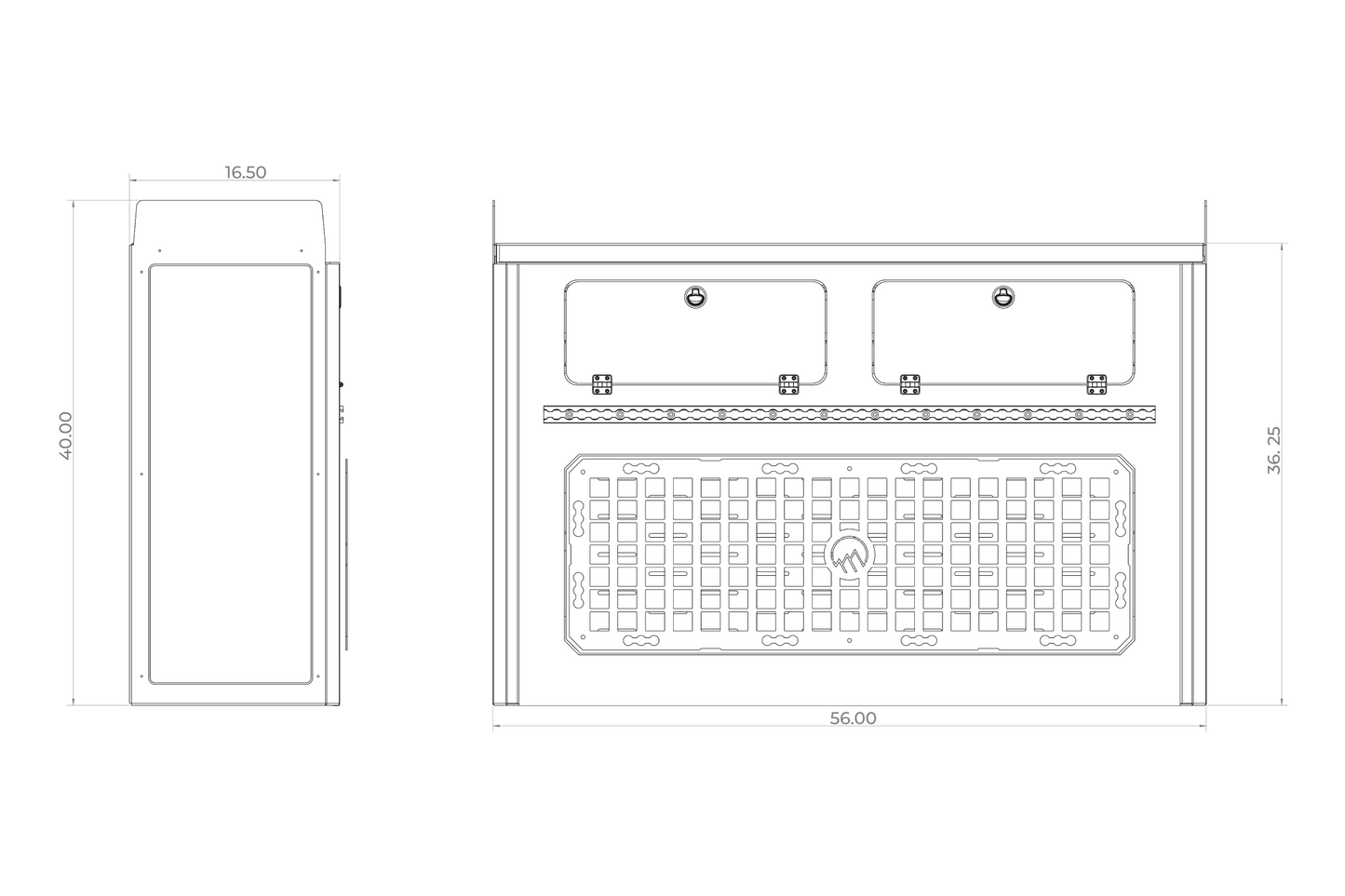

Fondation Specs:
- Height: 36" | Width: 56" | Depth: 16.5"
- Weight: 40 lbs
- Material: 8 GA 5052 Aluminum
- Finish: TIGER Drylac® powder coating
- Manufacturing: Laser Cut and CNC Bent
- MADE IN USA
